Enova EC-A1-PLMM2-30 - RRP: €59.00

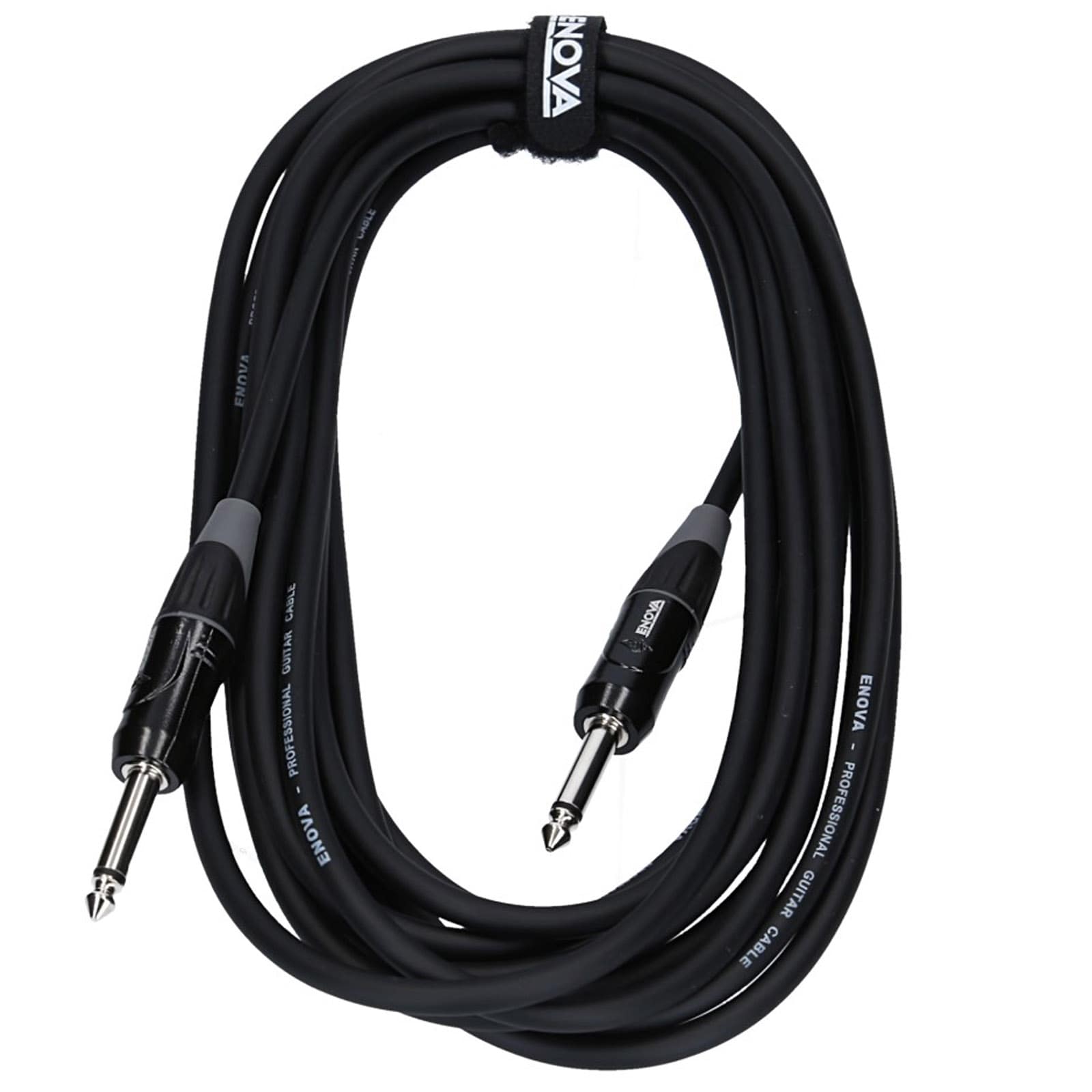

30 m 1/4" plug 2 pole Jack - Jack instrument cable with conductive PE shielding

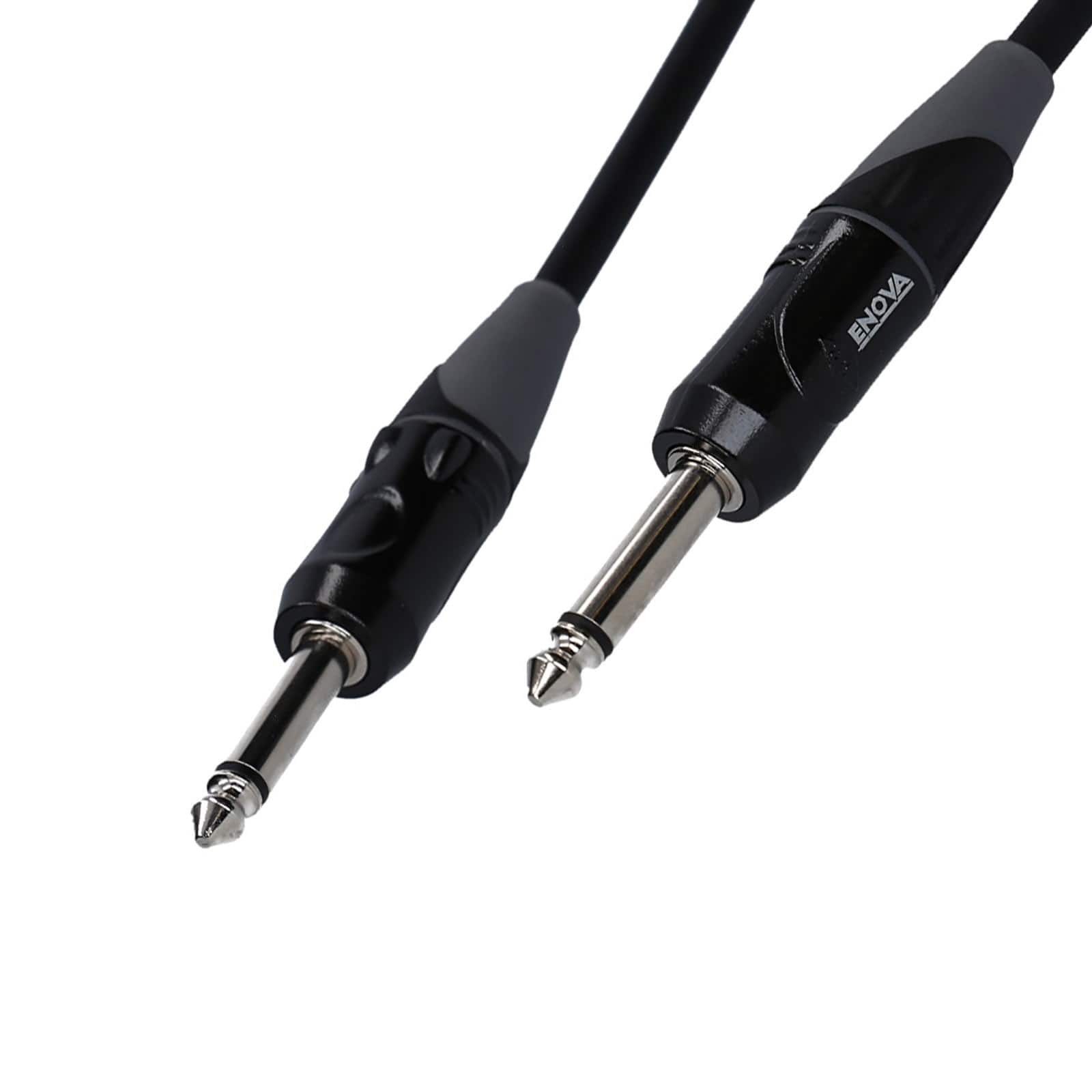

High quality 6.3 mm 2 pin jack connectors made of metal with a strain relief and a cable bend protection sleeve for a clean cable outlet.

Enova EC-A1-PLMM2-30 Specifications

Product information "30 m 1/4" plug 2 pole Jack - Jack instrument cable with conductive PE shielding"

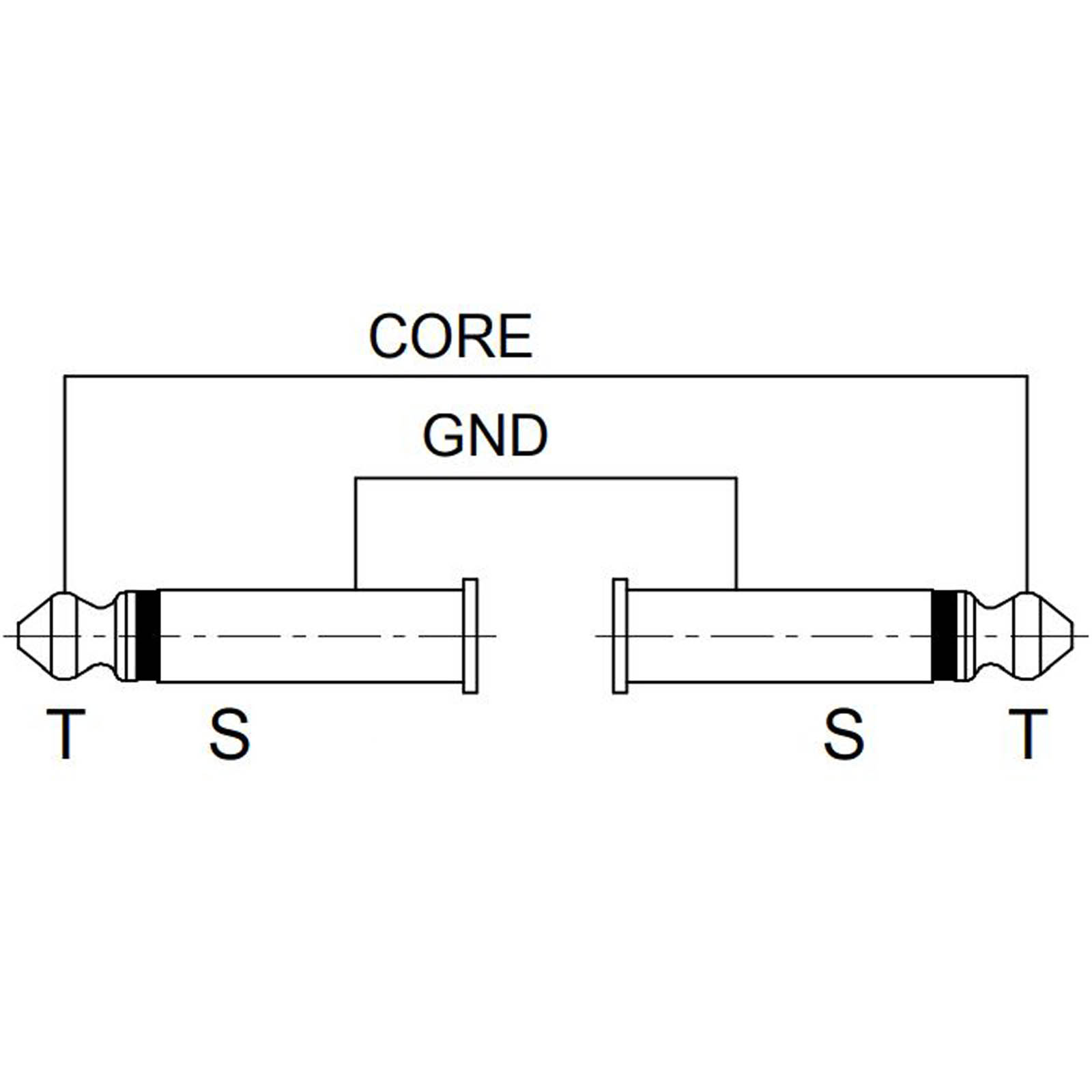

Plug side A: ENOVA 1/4" jack 2 pin
Plug side B: ENOVA 1/4" jack 2 pin
Cable length: 30 meters

Technical information:
High quality 6.3 mm 2 pin jack connectors made of metal with a strain relief and a cable bend protection sleeve for a clean cable outlet.
Professional assembled instrument cables. The handmade products are delivered with a 100% function control.
The cable is designed for asymmetrical audio connections.
The cable diameter is 6.0 mm. The outer jacket is flexible and robust and black.
The conductor cross section is 1 x 0.226 mm² (AWG 24 with 46x 0.12 mm strands) The conductors were produced with high quality OFC (Oxygen Free Copper) copper conductors.
The guitar cable has a shielding via spiral shield. The design of the PE conductive layer solves the noise problem of oscillation.
The ENOVA instrument cable is suitable as a movable and mobile activity cable.
Cond. D.C.R. Ohm / 1km < 84
Shild D.C.R Ohm / 1km <36
Nom Cap (pF/m) between Conductors 102
Operating temperature minus 20° C to plus 60° C

Brand: ENOVA
Series: A1-Serie
Version (Plug / Chassis): Cable Version
Connector type: 1/4 Jack, 1/4 Jack 2 pol
Cable type: 1/4" Plug - 1/4" Plug
Number of contacts: 2
Gender (M / F): Cable male to male
Connector housing color: Black
Cable surface color: Black
Cable length: 30 meters
Cable diameter: Ø 6 mm
Wire size: Ø 24 AWG 0.22 mm
Working temperature minimum: -20°
Working temperature maximum: +60°
Applications: Bass player, DJ, Guitar player, Keyboard player
AES EBU fit up to: 200 m

Enova EC-A1-PLMM2-30


Stoptime Music Distribution Ltd. are Exclusive Suppliers of Enova Cables in Ireland.
