Enova PL22MB - RRP: €5.00

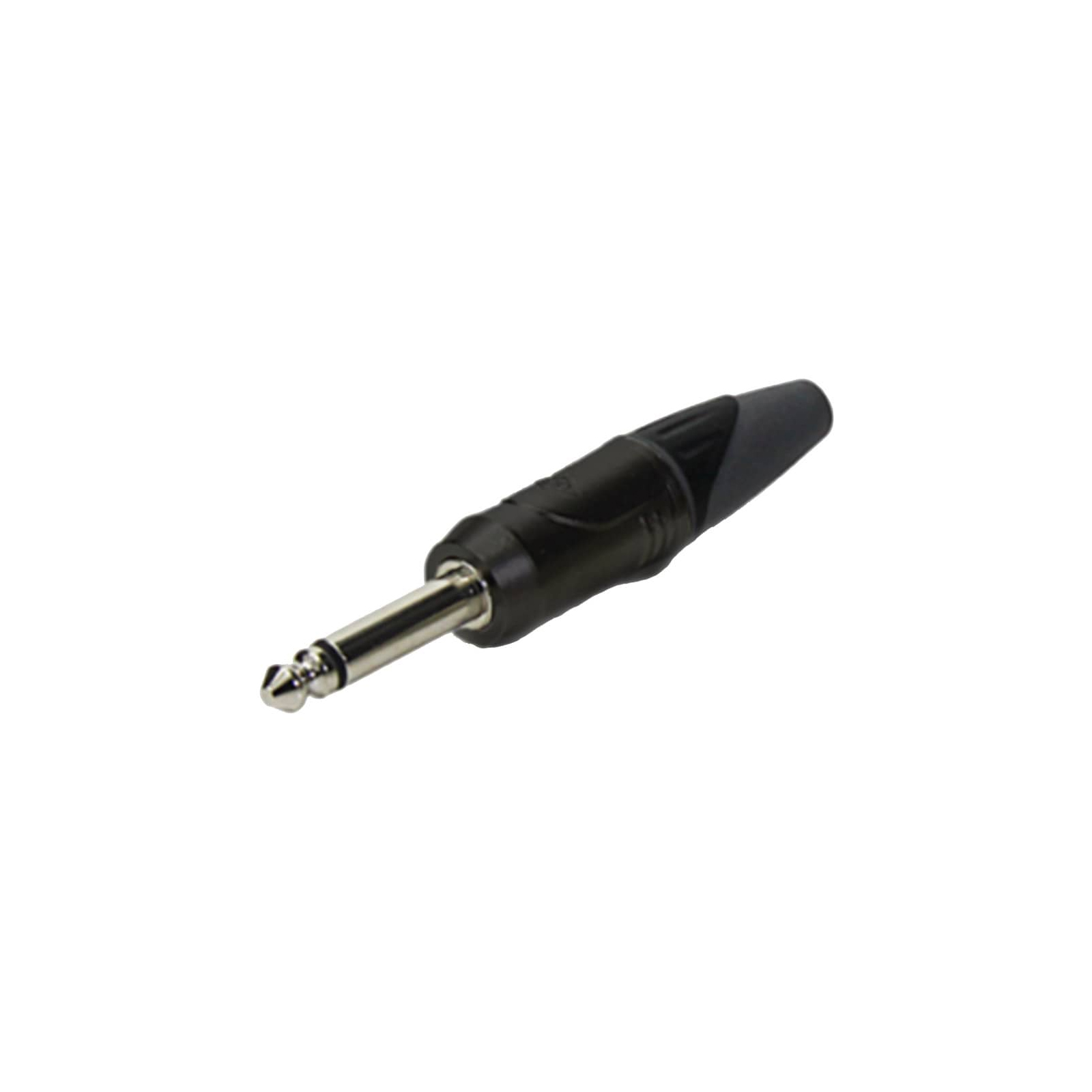

1/4" plug 2 pole mono black housing and grey boot

Enova PL22MB Specifications

Product information "1/4" plug 2 pole mono black housing and grey boot"

Mono jack cable connector with two contacts and a well-formed and robust button for a better user experience
The 2-pin jack connector has a triple-positioned clamp to prevent the inner cable from twisting and breaking.
This removable clamp is designed for multiple cable types
Remove the outer diameter washers: 3.3 to 4.8 mm
Standard connection for outside diameter: 5.0 to 6.5 mm
Remove the outer diameter clamp: 6.5 to 7.0 mm

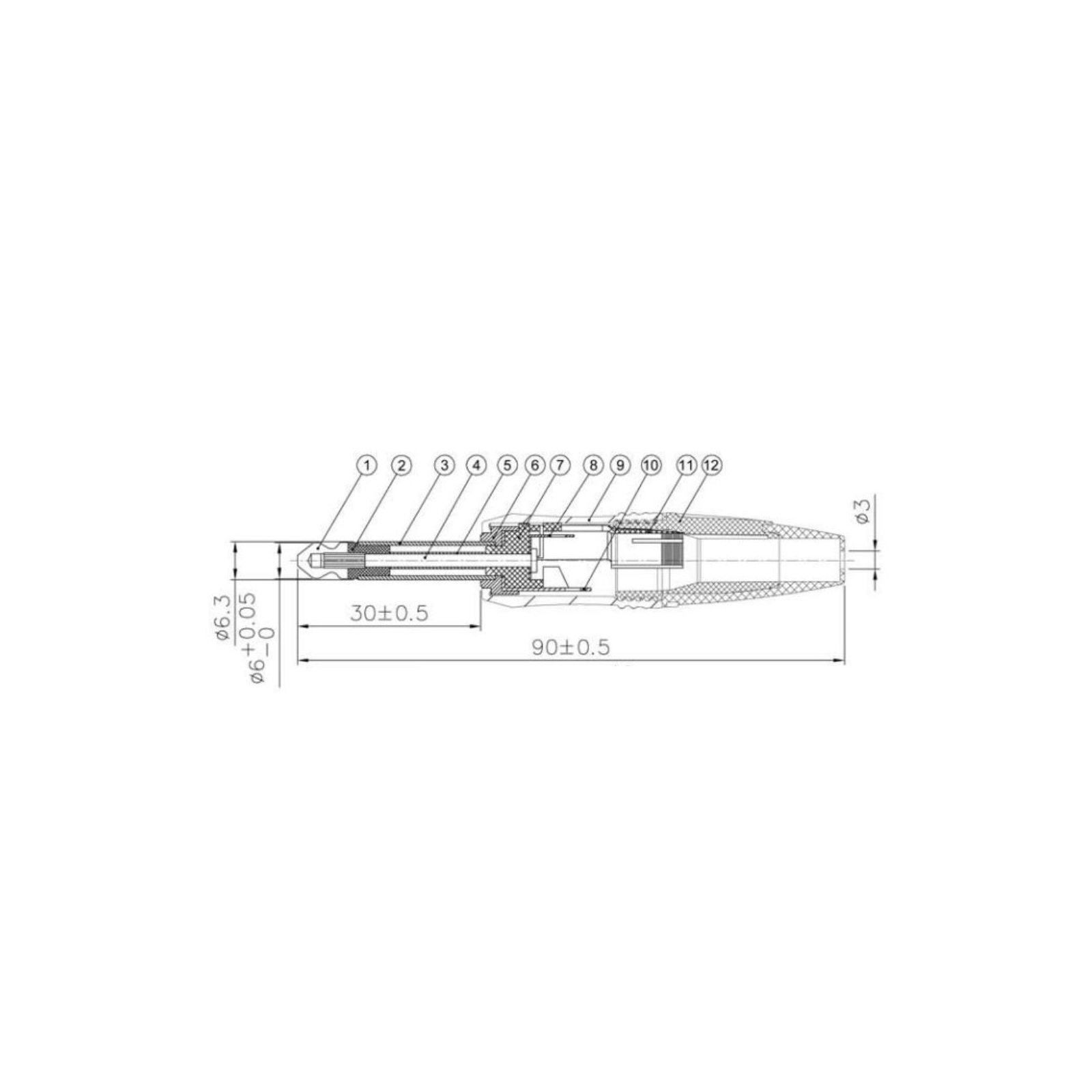

Length: 92 mm
Width: 16 mm
Height: 16 mm

Brand:	ENOVA
Series:	PL-Serie
Version (Plug / Chassis):	Cable Version
Connector type:	1/4 Jack, 1/4 Jack 2 pol
Number of contacts:	2
Gender (M / F):	Male plug
Connector housing color:	Black - nickel locking
Cable diameter min. in mm:	Ø 3.3 mm
Cable diameter max. in mm:	Ø 7 mm
Wiring mode:	Solder contact
Material connector housing:	ZZNAL4-1
Material contact:	H59-1
Working temperature minimum:	-30°
Working temperature maximum:	+80°
Classification flammability of plastics:	UL94HB
ROHS according to EN62321-1:	Yes
Country of origin:	China
Operating voltage (VAC.RMS):	< 50 V
Insulation resistance:	> 10 GΩ
Contact resistance:	≤ 3 mΩ
Applications:	Bass player, DJ, Guitar player, Keyboard player, Sound engineer
Markets:	Event Production, Industry, Medical technology, Mechanical engineering, Devices construction, Plant construction, Multimedia installation, Digital signage, Cable Assembly, Lighting, System integrator, Outdoor lighting, Broadcast, Recording studio
