Enova EC-A1-XLFM-5 - RRP: €24.00
5 m XLR female to XLR male microphone cable 3-pin analogue & AES with velcro.

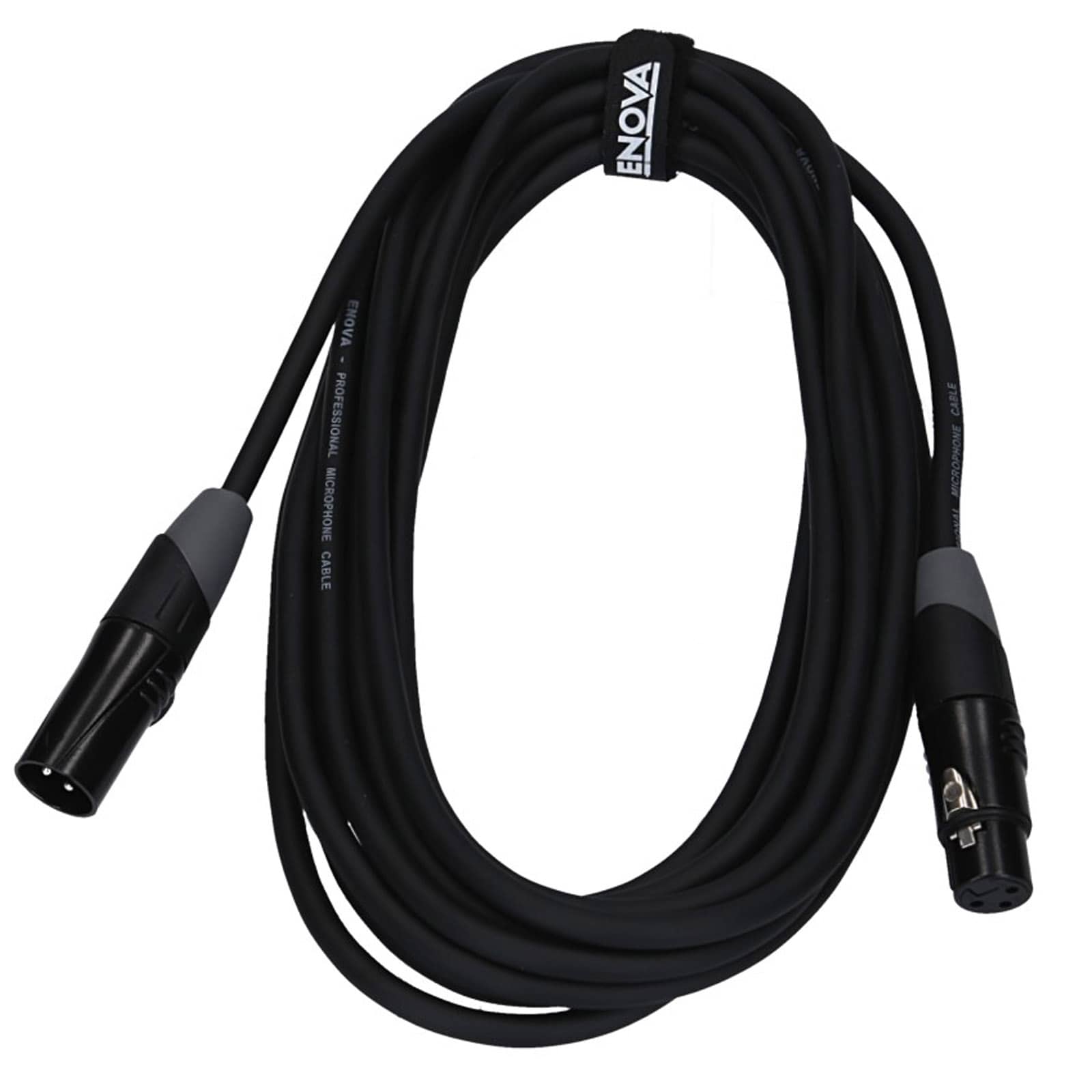

XLR cable 3 pin. XLR female to XLR male. Professional XLR cable with a black PVC jacket for flexible applications on stage, recording studio, exhibition or event. The cable is designed for analog balanced signals) or digital signals( AES/EBU or DMX). The microphone cable is supplied with a Velcro closure.
Enova EC-A1-XLFM-5 Specifications
Connector side A: ENOVA XLR female 3 pol
Connector side B: ENOVA XLR male 3 pol
Cable length: 5 meters
Technical information:

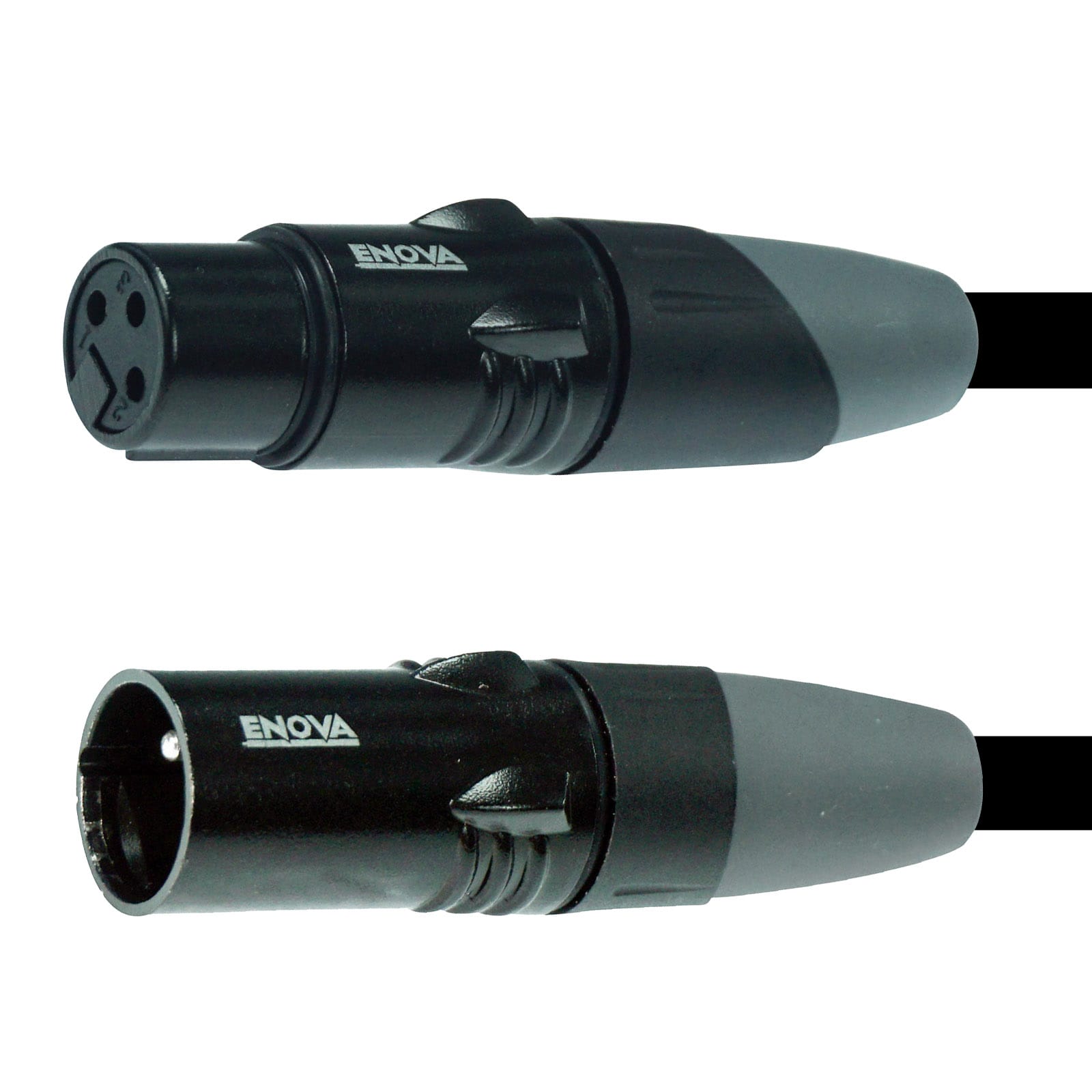

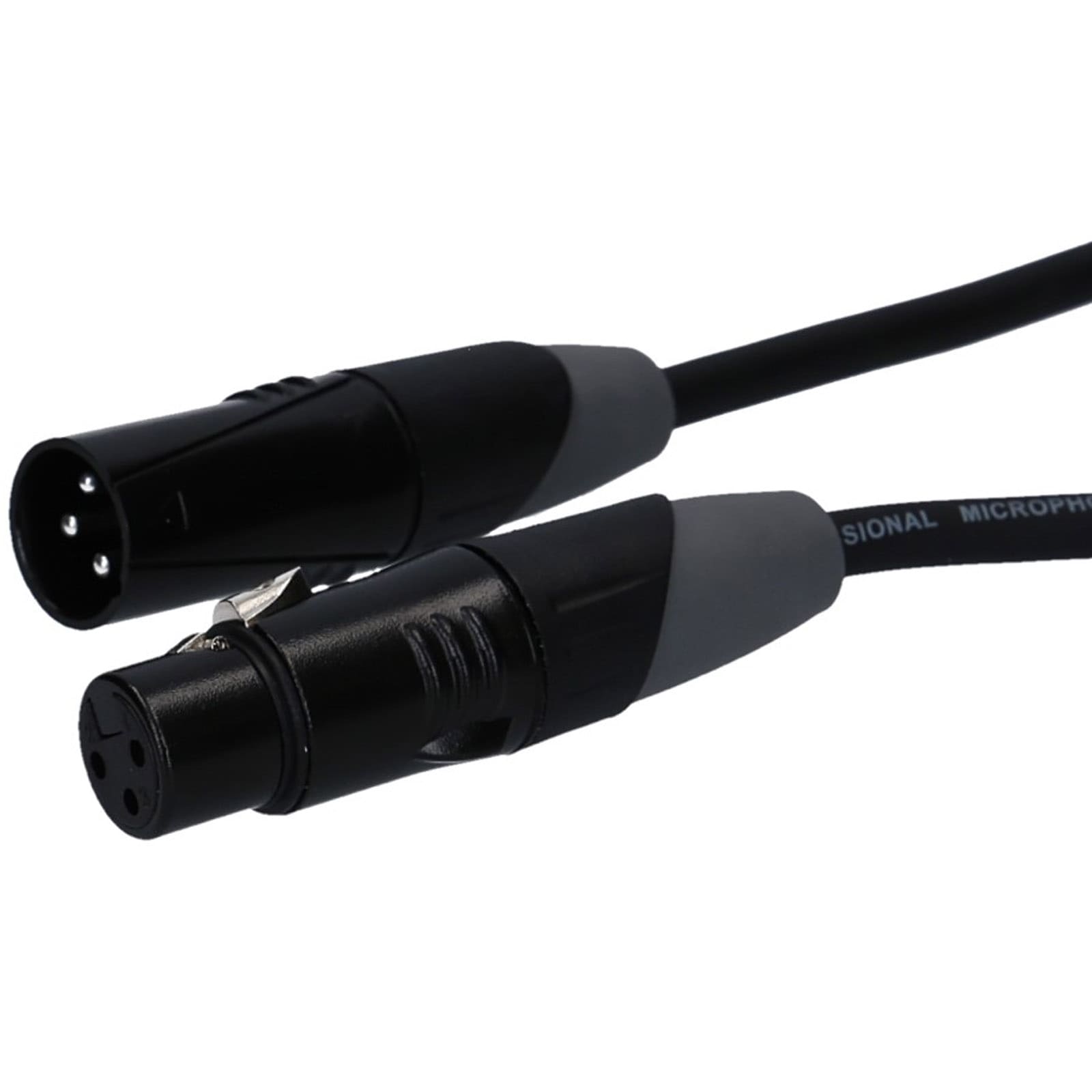

High-quality ENOVA XLR connectors made of metal with strain relief and a cable kink protection boot for a clean cable outlet.
Professional, assembled microphone cables with additional insulation over each conductor at the solder contact. The hand-made products are delivered with a 100% functional check.
The cable is designed for symmetrical audio connections for analog and digital AES / EBU signals suitable up to 200 m.
The cable diameter is 6.5 mm. The outer jacket is flexible and robust and black.
The conductor cross-section is 2 x 0.22 mm² (AWG 24 with 7x 0.20 mm strands) The conductors were produced with high quality OFC (Oxygen Free Copper) copper cables.
The conductor insulation is made of FPE material and is marked in blue and red. Flexible PolyEster (FPE) is a high-tech material that combines various properties such as strength, flexibility and temperature resistance in one material.
The microphone cable is shielded by a spiral shield.
The ENOVA DMX cable is suitable as a flexible and mobile activity cable.
Cond. D.C.R. Ohm / 1km <80
Shild D.C.R Ohm / 1km <30
Nom cap (pF / m) between conductors 52
Working temperature minus 20 ° C to plus 60 ° C.
| Series: | A1-Serie |
| Version (Plug / Chassis): | Cable Version |
| Connector type: | XLR, XLR female 3 pol, XLR male 3 pol |
| Cable type: | XLR female - male |
| Number of contacts: | 3 |
| Gender (M / F): | Cable female to male |
| Cable surface color: | Black |
| Cable length: | 5 meters |
| Cable diameter: | Ø 6.5 mm |
| Wire size: | Ø 24 AWG 0.22 mm |
| Working temperature minimum: | -20° |
| Working temperature maximum: | +60° |
| Applications: | DJ, Keyboard player, Singer, Sound engineer |
| AES EBU fit up to: | 200 m |
Enova EC-A1-XLFM-5
Stoptime Music Distribution Ltd. are Exclusive Suppliers of Enova Cables in Ireland.
