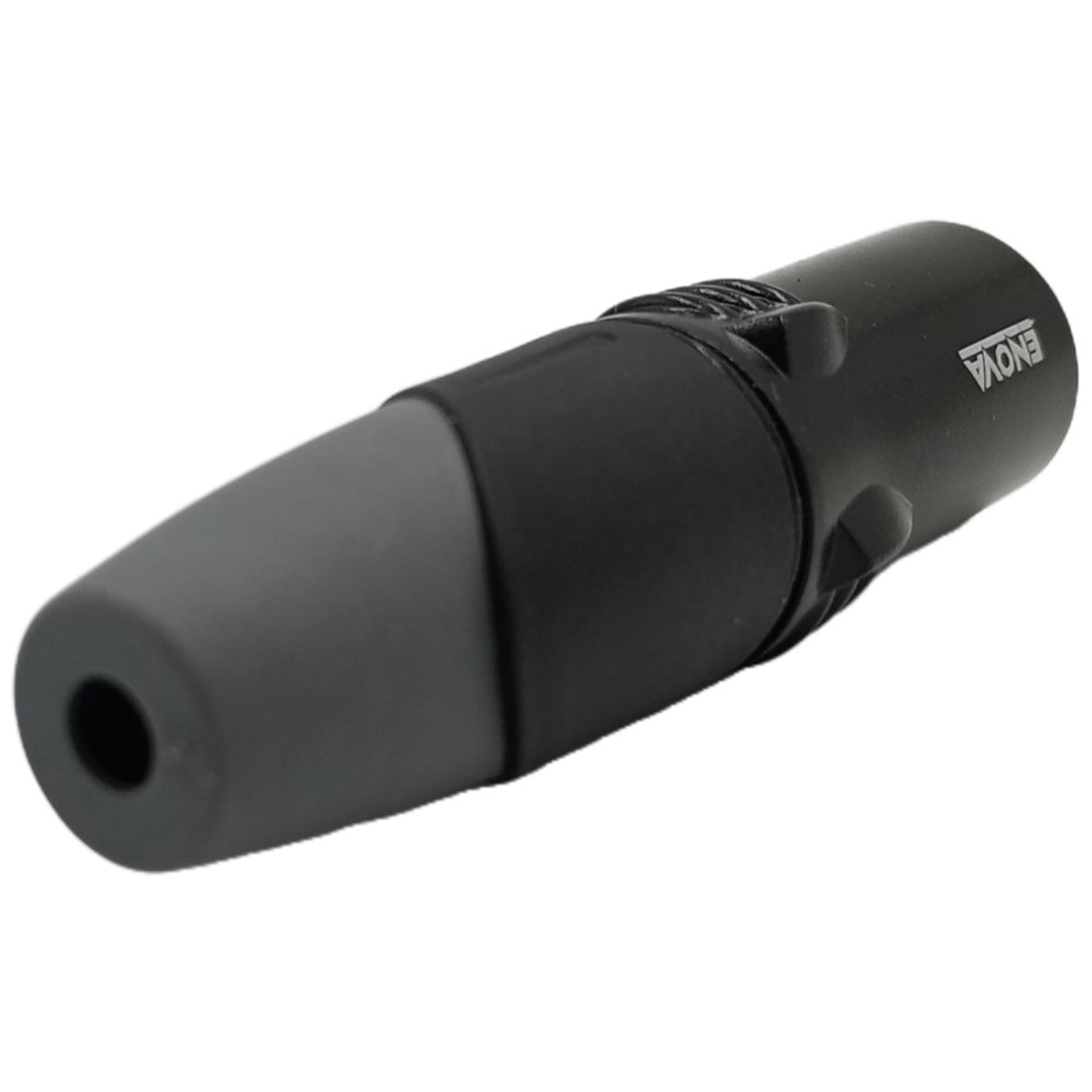

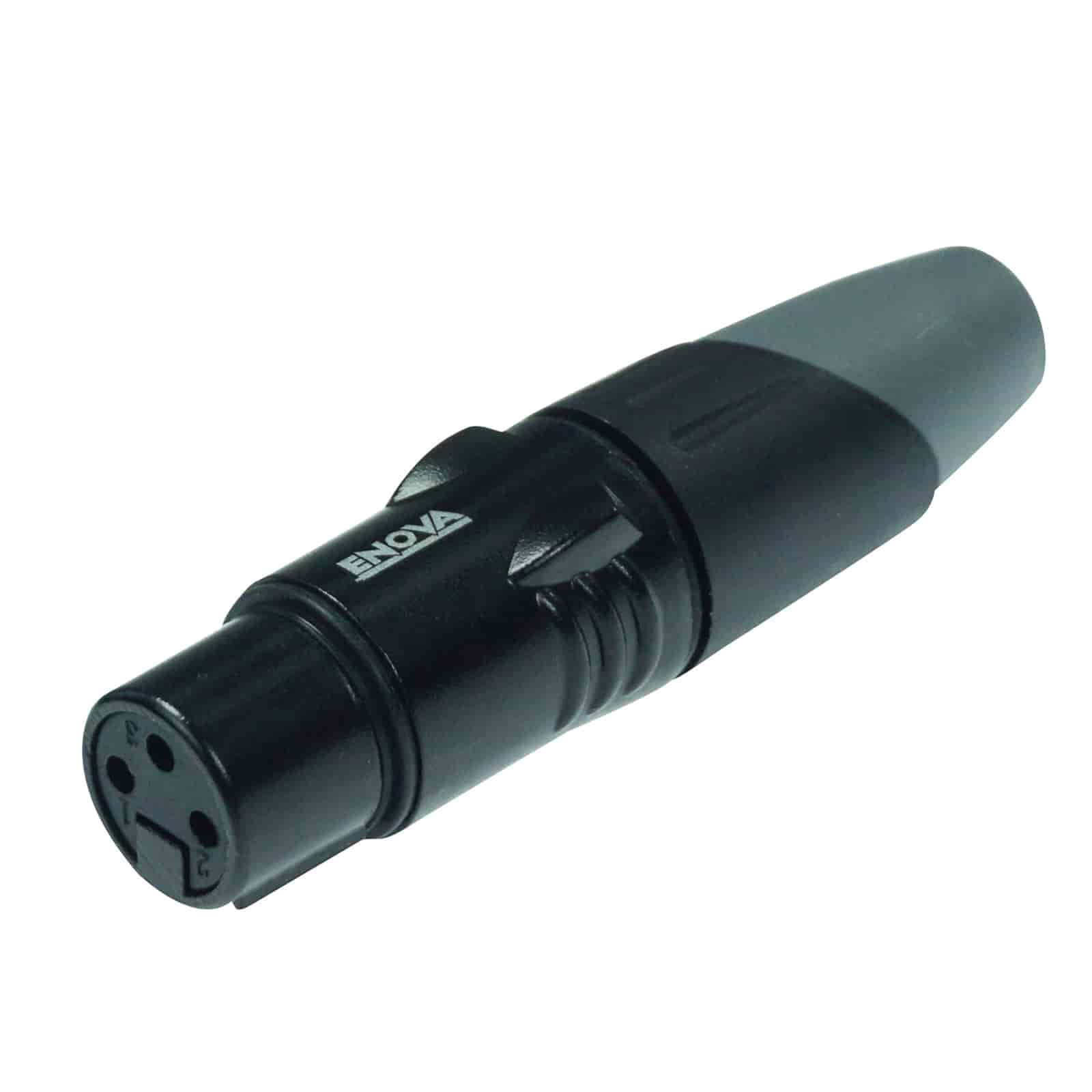

Enova XL23FB - RRP: €5.00

ENOVA offers a reliable solution for the requirements of the pro audio industry and event technology with its 3-pin female XLR cable connector from the XL series. The XLR female cable connector with the model designation: XL23FB has an excellent price-performance ratio and high product quality

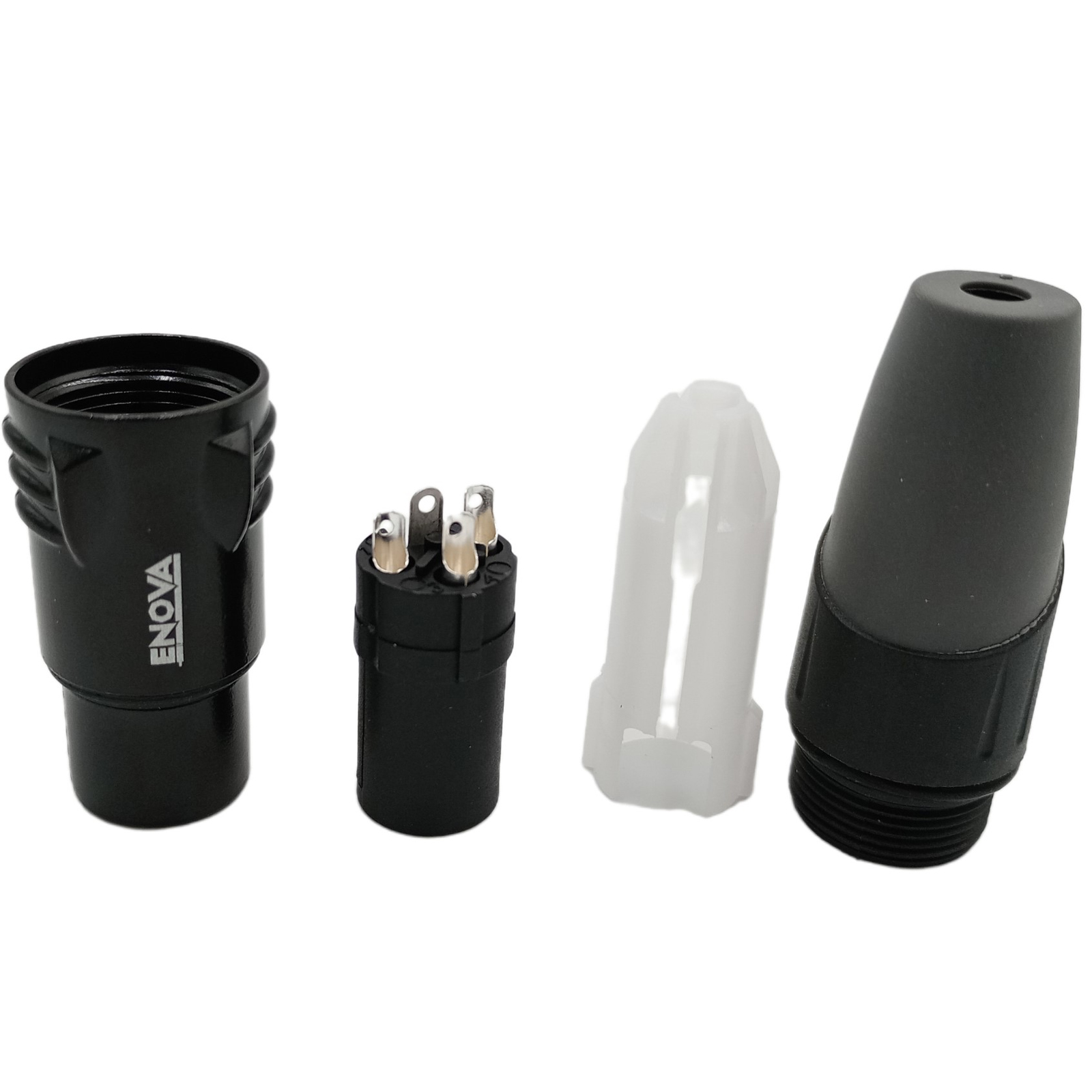

Equipped with three solder contacts that solder well, a sturdy metal housing, collets and colored cable grommets, it ensures a secure connection of audio components.
The clamps are positioned in three positions to prevent the cable from twisting or becoming loose and to protect the cable sheath. Adaptation to different cable diameters is easy: the clamping ring can be removed as required to support outer diameters from 3.3 to 7 mm. The color-coded cable grommets ensure easy identification and are tightened by turning the thread on the zinc shell to ensure a reliable connection.

This XLR connector meets the highest standards in terms of insulation, material quality and temperature resistance. The solder contacts can be soldered well and for a long time. With a working temperature of -30° to +80° Celsius, an insulation resistance of over 10 GΩ and a contact resistance of ≤ 3 mΩ, it is suitable for demanding environments. The construction made of high-performance plastics and phosphor bronze as well as the waterproof silicone components ensure a long service life and reliability.

This robust XLR connector is used in the following industries: Radio and television technology, musicians, sound engineers, event lighting technology, entertainment electronics, event technicians, medical technology, industrial measurement and testing technology, trade fair construction, electro-acoustics, safety technology and several more industries.

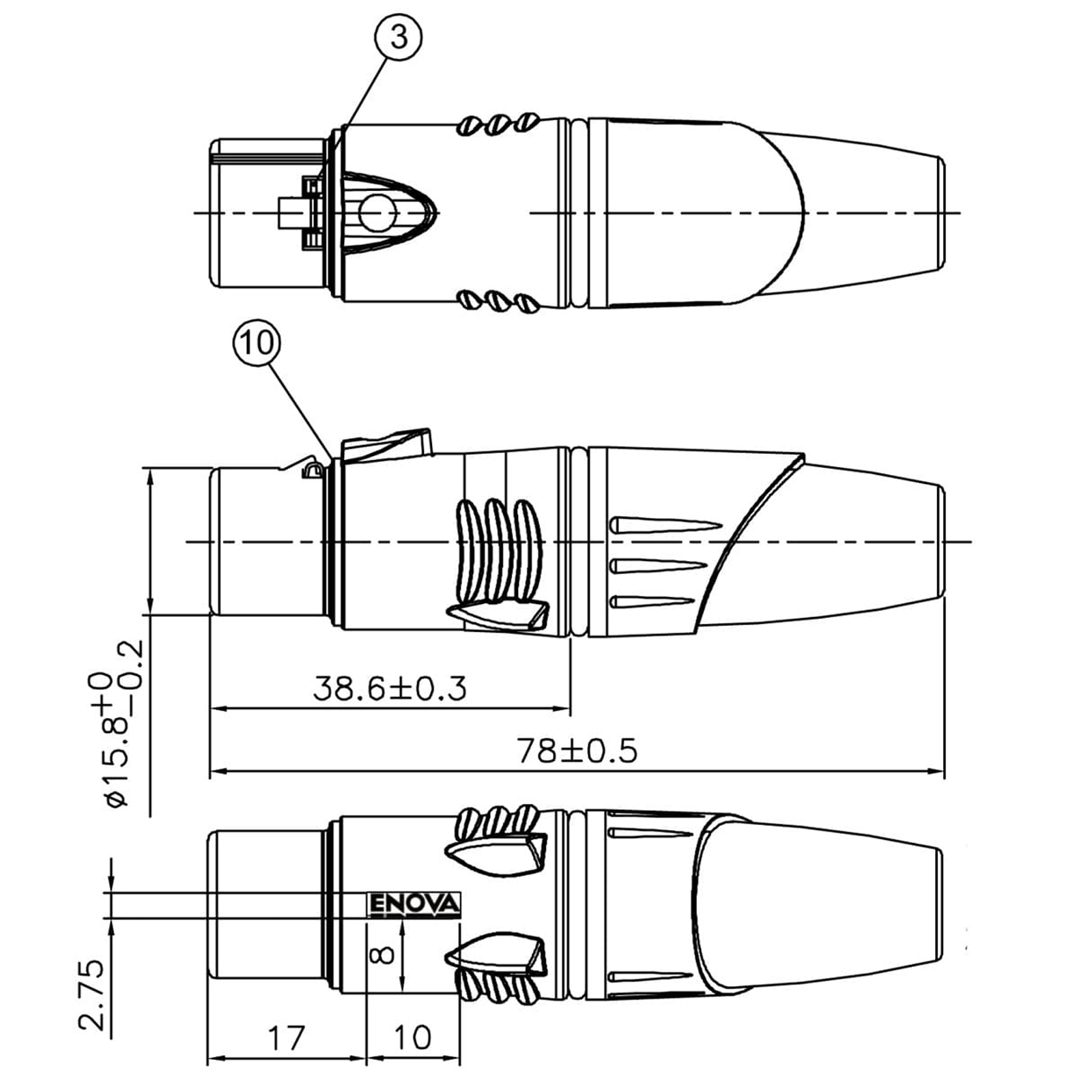

Connectors according to XLR standard with the size:
Length: 78 mm
Width: 22 mm
Height: 22 mm
